A toroidal flat-wire PFC inductor uses flat copper wire wound on a toroidal core to improve efficiency and power density in high-power supplies. Key benefits over round-wire designs include lower losses, better thermal performance, and smaller size—ideal for EV chargers, solar inverters, and switching power supplies.

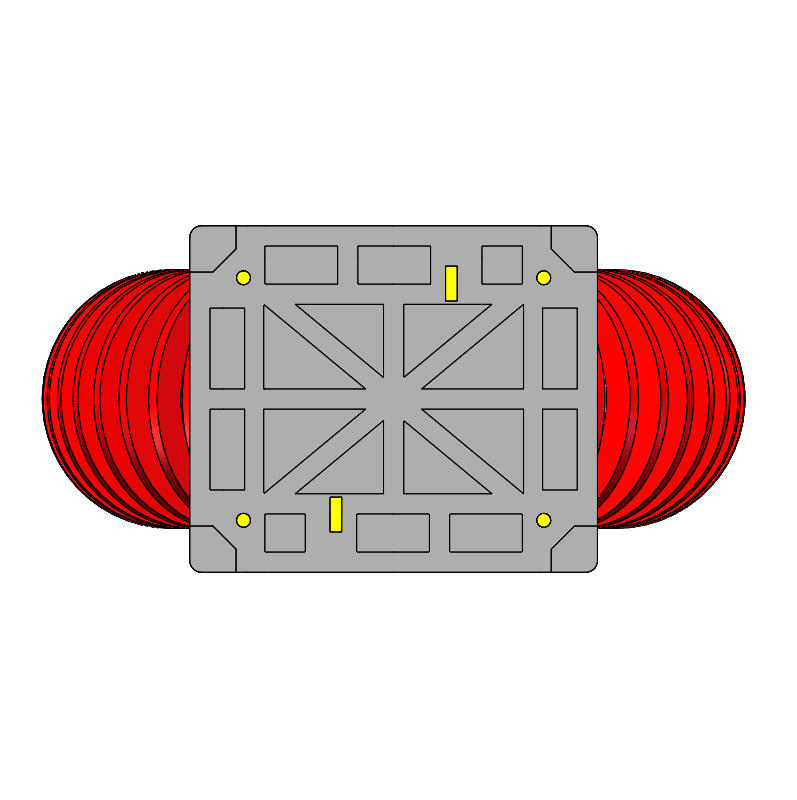

Flat-Wire Toroidal PFC Choke for Smart and Energy-Saving Appliances
With low losses, excellent thermal performance, and small footprint, plus the toroidal core's natural low leakage flux, the toroidal flat-wire inductor is ideal for high-performance PFC. Continuous improvements in materials, structure, and process are pushing power supplies toward better efficiency and higher power density.
Key Features
Loss Reduction & Heat Dissipation
Flat wire has larger surface area than round wire at same cross-section
Suppresses skin effect, lowers AC resistance and winding losses
Better heat dissipation: up to 20°C lower temperature rise
Higher Power Density
Higher fill factor (core window utilization)
Smaller inductor size at same current rating
Volume reduced by 1/3 to 1/2 vs. conventional designs
Optimized Parasitics

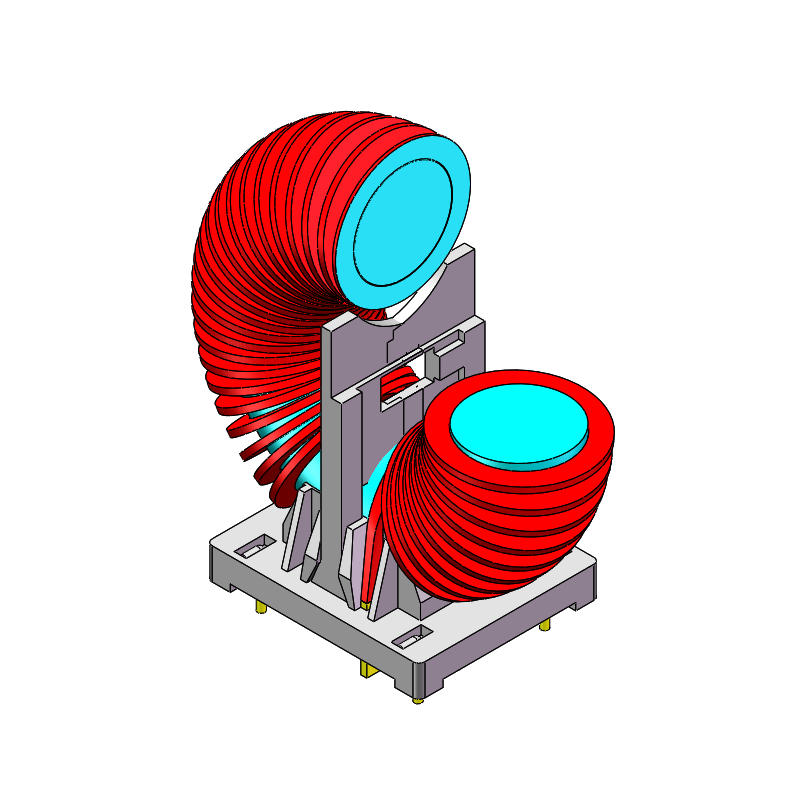

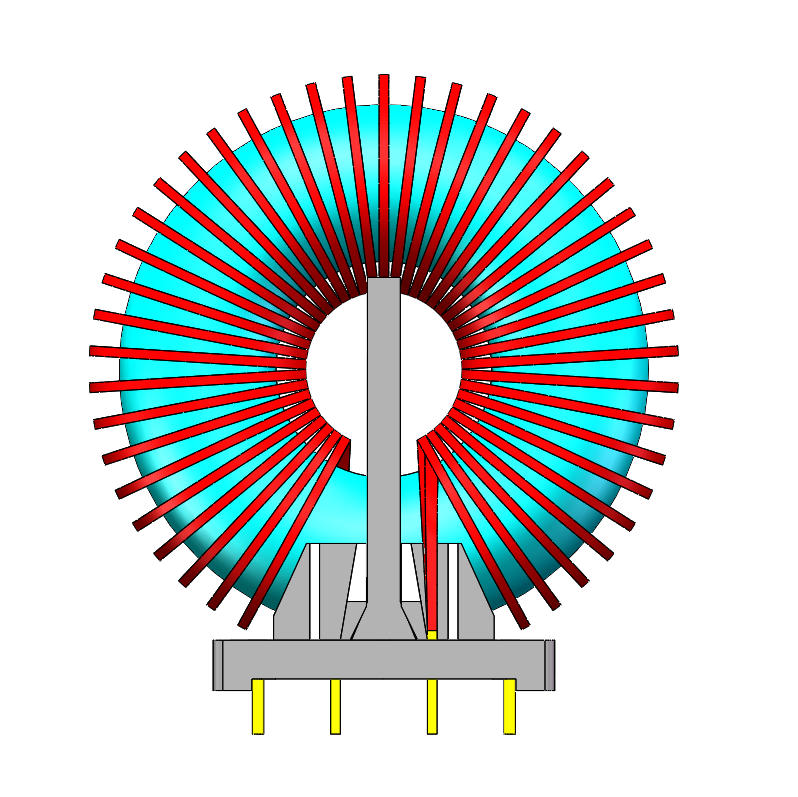

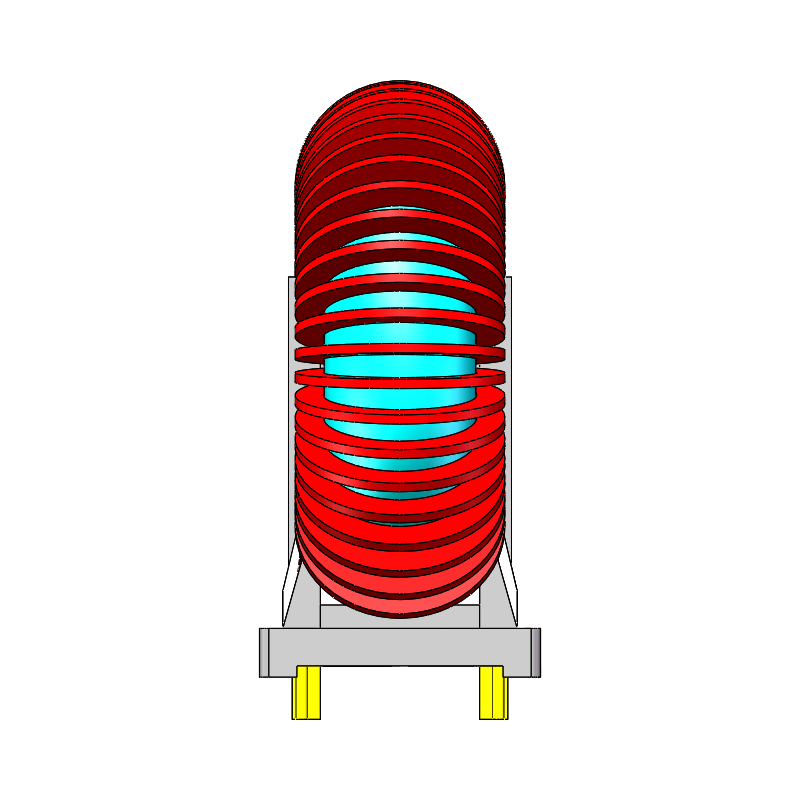

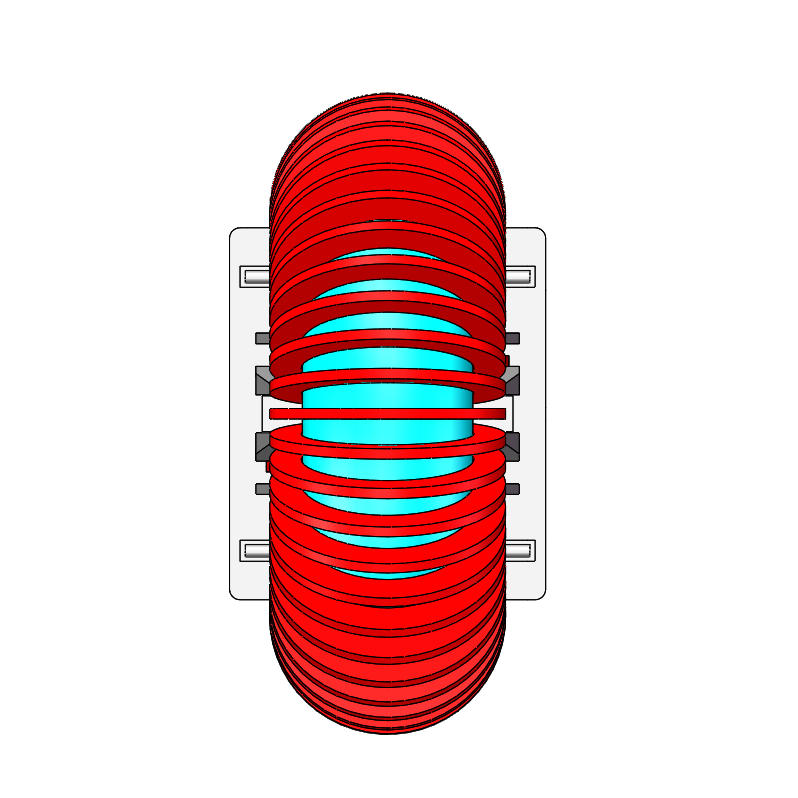

Single-layer vertical winding structure
Reduces interlayer parasitic capacitance
Higher self-resonant frequency, stable high-frequency performance
DC-Dias| Electric Current (A) | Inductance uH |
| 0 | 272 |
| 2 | 269 |
| 4 | 264 |
| 6 | 255 |
| 8 | 242 |
| 10 | 225 |
| 12 | 208 |
| 14 | 191 |
| 16 | 175 |
| 18 | 147 |

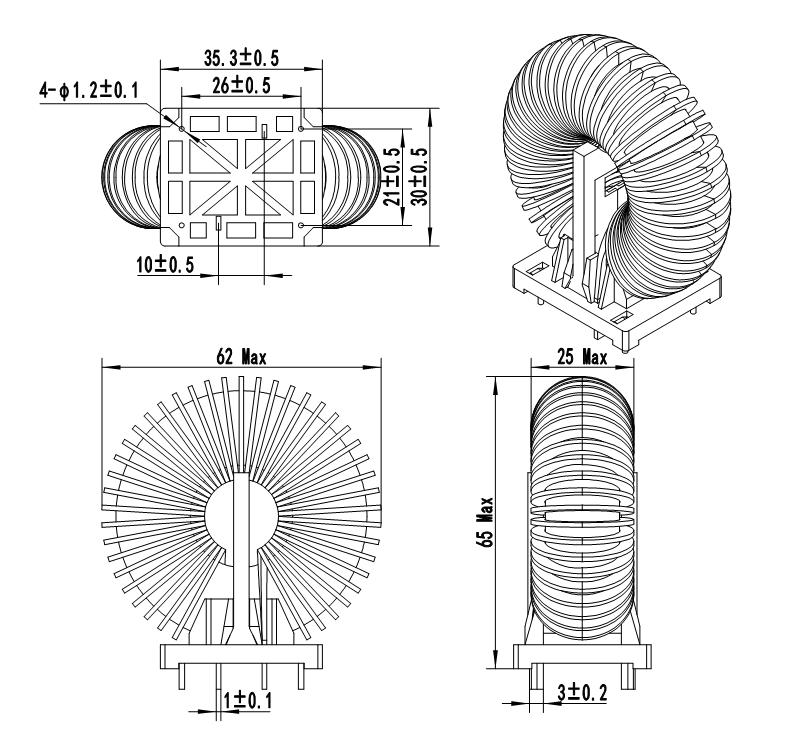

Winding Specification
| Winding | Terminal | Wire Specification | Turns | Remarks |
| N1 | S-F | QZY-2/180 1*3 | 42TS | Reference turns |
Material
| Item Name | Specification |
| Enamelled Wire | 2UEW-H 1*3 |
| Magnetic Core | NPH542216-60 |
| Bobbin / Coil Former | 30X35/T375HF/Black |
| Epoxy Adhesive | 116P-1 A/B |
| Solder / Solder Tin | Sn99.3Cu0.7 |
Electrical Parameters
| Inductance #1 | 270uH±15%(60KHz/1V) |
| Inductance #2 | 200uH Min(60KHz/1V/10A) |
| DC Resistance (DCR) | 17 mΩ Max |
| Insulation Dielectric Voltage (Hi-pot) | 2.0KVac 2mA-3S |
| Insulation Resistance (IR) | 100MΩ Min(DC500V) |
Target Applications
Power Conversion Systems:
Widely used in switching mode power supplies (SMPS), DC power modules, and energy conversion circuits requiring stable inductance and efficient current handling.
Electric Vehicle Power Electronics:
Applied in EV onboard chargers (OBC), automotive DC-DC converters, and other high-power vehicle charging and power management systems.
Industrial & Communication Infrastructure:
Suitable for industrial power supplies, telecom equipment, high-power base station systems, and server power architectures where compact design and high reliability are required.
Power Factor & Harmonic Control:
Ideal for PFC circuits, harmonic filtering applications, and industrial power conditioning systems to improve power quality and operational efficiency.
