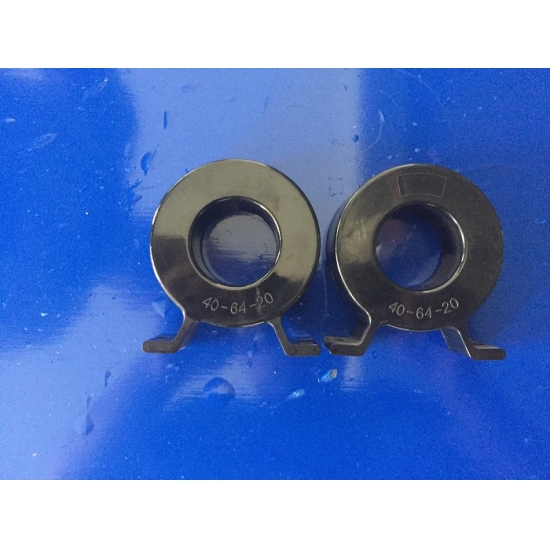

Inverter transformers core OFN-IT-064040020
Inverter transformers core OFN-IT-064040020

Inverter transformers core OFN-IT-064040020

Product Details

1. Material of Inverter transformers core:Fe-base nanocrystalline alloy ribbon

2. Dimensions of Core：

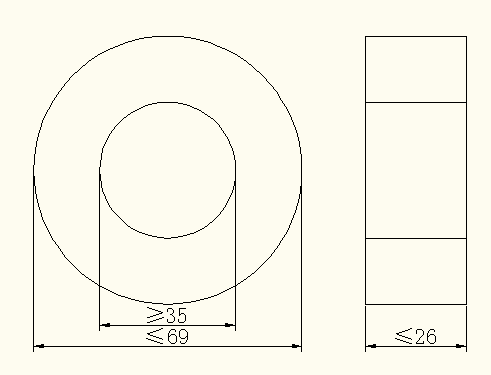

3. Finish Dimensions：

4. Magnetical Test：(AQL 0.65)

Test of Iron loss and AL according to GB/T 19346-2003( The test standard for Fe-base nanocrystalline alloy in China)

4.1  AL Test:

4.2 Loss Test:

Magnetic Induction Density：B=0.5T

Frequency：f=20kHz

Test Equipment：2010SA AC soft magnetic tester

Iron Loss：pFe≤25W/kg

OFN-IT-064040020 Iron Loss：PFe≤5.5W

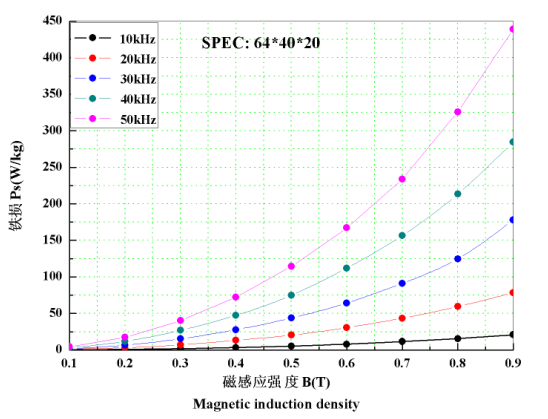

Fig.2  The Loss of OFN-IT-064040020 in different  working point.
