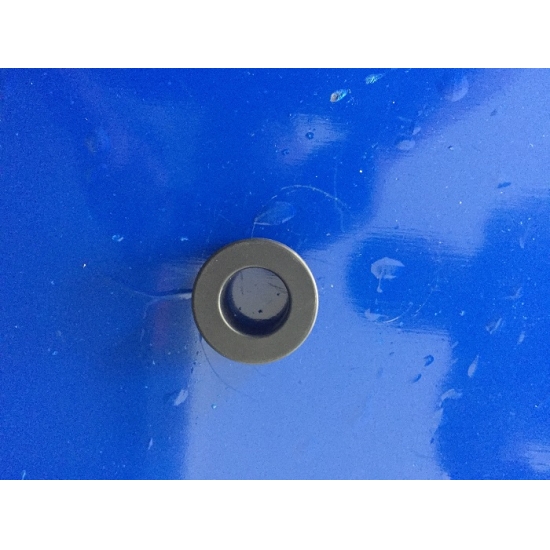

Inverter transformers core OFN-IT-050032020
Inverter transformers core OFN-IT-050032020

Inverter transformers core OFN-IT-050032020

Product Details
1. Material of Core:Fe-base nanocrystalline alloy ribbon
2. Dimensions of Core:

3. Finish Dimensions:

4. Magnetical Test:(AQL 0.65)
Test of Iron loss and AL according to GB/T 19346-2003( The test standard for Fe-base nanocrystalline alloy in China)
4.1 AL Test:

4.2 Loss Test:
Magnetic Induction Density:B=0.5T
Frequency:f=20kHz
Test Equipment:2010SA AC soft magnetic tester
Iron Loss:pFe≤25W/kg
OFN-IT-050032020 Iron Loss:PFe≤3.25W

The Loss of OFN-IT-050032020 in different working point.
