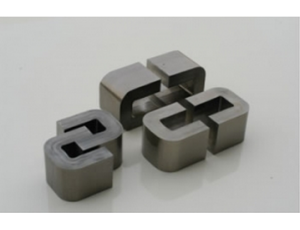

Amorphous core AMCC-32

Product Details

1. Material of Core:Fe-base amorphous alloy ribbon

2. Dimensions of Core:



3Magnetical Test:(AQL 0.65)

Test of Iron loss and AL according to GB/T 19346-2003( The test standard for Fe-base nanocrystalline alloy in China)

3.1 Loss Test:

Magnetic Induction Density:B=0.037T

Frequency:f=16kHz

Test Equipment:2010SA AC soft magnetic tester

Iron Loss:pFe1.2W/kg

AMCC-32 Iron Loss:PFe0.55W

3.2 AL Test:

We can be gained different permeability and inductance values by adjusting the air gap.
