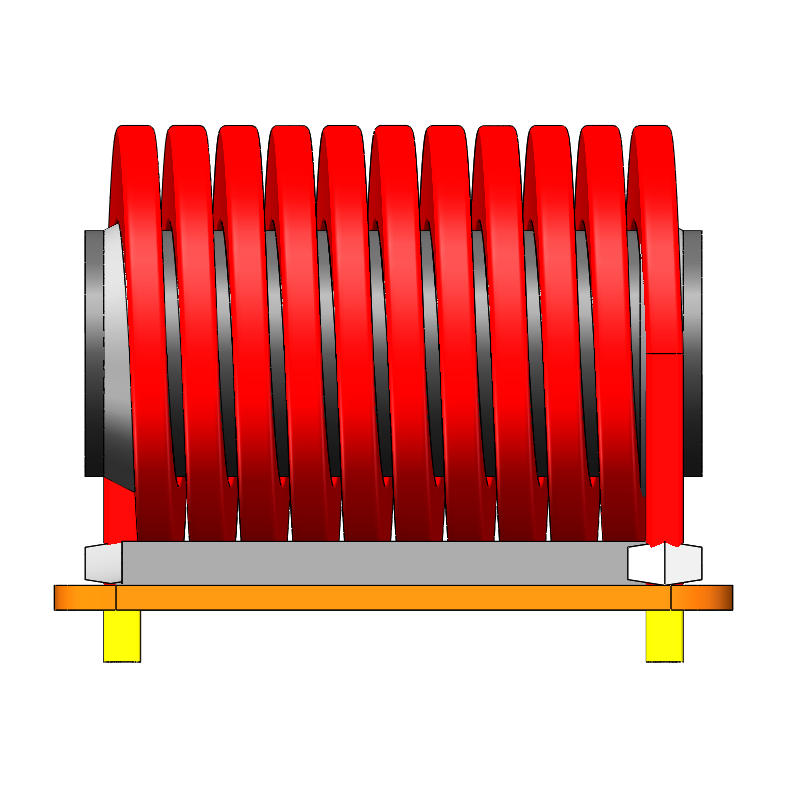

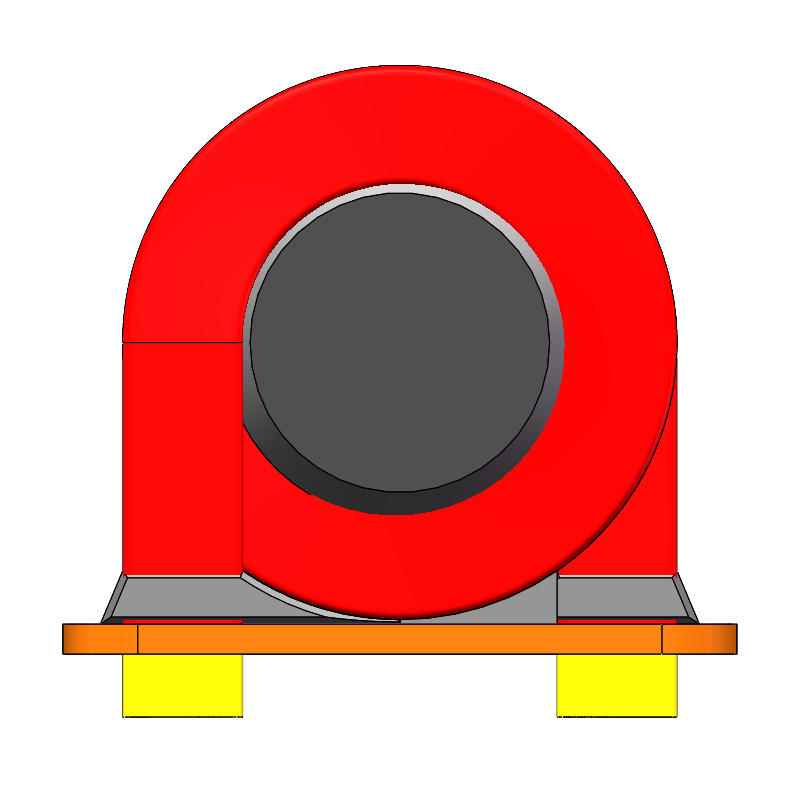

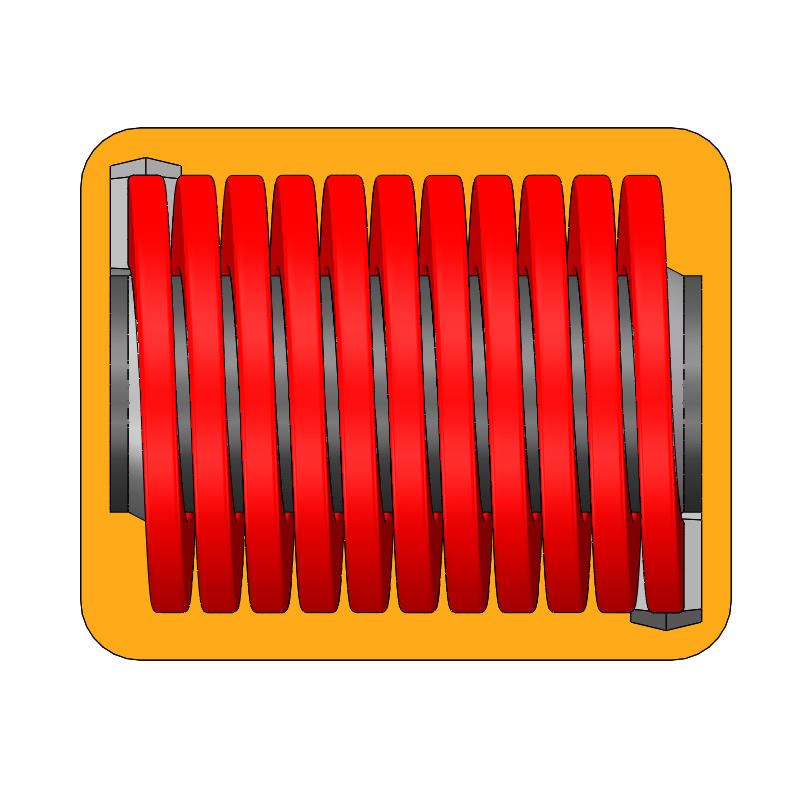

High-Efficiency CD-Type Amorphous Inductor for Advanced Power Systems
Our CD-Type Amorphous Inductors utilize premium amorphous alloy core technology designed for next-generation power electronics that demand maximum energy conversion efficiency and ultimate power density. Featuring a split-core (CD-type) architecture, these inductors offer exceptional magnetic properties that far surpass traditional silicon steel and ferrite cores.
Engineered to handle high transient currents while maintaining ultra-low core losses and near-silent operation, they are the ideal choice for high-power PFC circuits, renewable energy, and automotive-grade applications.
Key Features
Extremely Low Core Loss: Amorphous alloy significantly reduces hysteresis and eddy current losses. This yields minimized heat generation and higher power conversion efficiency—delivering typically 80–90% lower core loss compared to traditional silicon steel.
High Saturation Flux Density: Amorphous material offers a high saturation magnetic flux density (Bs ≈ 1.2-1.56T), which is 3-5 times higher than ferrite cores (0.3-0.5T). Allows the inductor to handle large transient currents without saturation, providing excellent reliability
Superior Miniaturization Capability: Thanks to high permeability and high Bs, the exact same inductance value can be achieved in just 1/8 to 1/10 of the physical volume of traditional inductors, enabling ultra-compact, high-power-density designs.
Low Noise & Low Vibration: Utilizing amorphous alloys with an extremely low magnetostriction coefficient, this design virtually eliminates audible core "squealing" or humming. This is a critical advantage for EV, audio, and medical applications.
Excellent Temperature Stability: High Curie temperature (up to 500°C+) ensures stable performance from -55°C to 130°C. Suitable for high-temperature, high-power environments
Adjustable Air Gap Flexibility: The CD-type split-core design allows for precise air gap adjustments, enabling customizable effective permeability to meet your exact circuit and ripple current requirements.
DC-Dias| Electric Current (A) | Inductance uH |
| 0 | 137 |
| 30 | 137 |
| 60 | 133 |
| 90 | 128 |
| 120 | 121 |
| 150 | 112 |
| 180 | 102 |
| 210 | 88 |
| 240 | 76 |
| 270 | 66 |
| 300 | 56 |
Winding Specification
| Winding | Terminal | Wire Specification | Turns | Remarks |
| N1 | 1-2 | QZY-2/180 2*15 | 26TS | Reference turns |
Material
| Item Name | Specification |
| Enamelled Wire | QZY-2/180 2*15 |
| Magnetic Core | NPF113068013-75uH |
| Bobbin / Coil Former | 187*121*109/ADC12 |
| silicone rubber | JD-605A/B |
| Solder / Solder Tin | Sn99.3Cu0.7 |
Electrical Parameters
| Inductance #1 | 550uH Min |
| Inductance #2 | 500uH Min |
| DC Resistance (DCR) | 20 mΩ Max |
| Insulation Dielectric Voltage (Hi-pot) | 1.8KVac 2mA-3S |
| Insulation Resistance (IR) | 100MΩ Min(DC500V) |
Target Applications
Our CD-Type Amorphous Inductors are engineered for high-performance, high-power filtering and power factor correction:
E-Mobility: EV onboard chargers (OBC) & DC-DC converters.
Renewable Energy: Photovoltaic (PV) inverters & grid-tied energy storage systems (ESS).
Next-Gen Computing: AI servers & 5G telecommunications base station power supplies.
Power Quality: High-power PFC (Power Factor Correction) circuits and industrial switching power supplies.
Proven Industry Expertise: With over 20 years of industrial experience and a solid foundation established in 2013, we operate five major core industrial lines across multiple specialized manufacturing bases to ensure top-tier product scale and stability.
Global Quality Certifications: Our facilities strictly adhere to international automotive and industrial standards, backed by a complete set of major credentials including IATF16949, ISO9001, ISO14001, ISO45001, and ISO50001.
Strong R&D & Technical Innovation: Driven by dedicated research teams and specialized new-design laboratories, we possess extensive patent portfolios and advanced testing capabilities to provide highly reliable, customized magnetic solutions.
Smart & Scalable Manufacturing: We leverage advanced ERP and MES-managed smart manufacturing systems to optimize production capacity, securing a highly dependable supply chain for international clients across the EU, US, and globally.
FAQ
Q1: What are the main advantages of an amorphous core inductor?
A1: Compared to traditional silicon steel, amorphous cores cut energy losses by 80% to 90%, meaning much less heat generation. They also handle higher currents while being only a fraction of the size of standard inductors.
Q2: What is the benefit of the CD-type split-core design?
A2: The CD-type split-core design allows us to easily adjust the air gap. This flexibility means we can precisely customize the electrical performance to match your exact circuit and ripple current needs.
Q3: Will these inductors cause audible buzzing or noise?
A3: No. Our amorphous alloy material eliminates high-frequency core "squealing" or humming. This near-silent operation makes them ideal for noise-sensitive applications like electric vehicles (EVs) and audio systems.
Q4: Can I request customized specifications for my project?
A4: Yes, we provide full custom design services. We can adjust the inductance, current ratings, wire specs, and physical dimensions to ensure the component fits your specific power system requirements.
